Single Reduced Cold-Rolled Tinplate
Single reduced cold-rolled tinplate refers to those products where the steel substrate has been reduced to the desired thickness in a cold-reduction mill and subsequently annealed and temper rolled.
Phone :+86 199 6355 0024
WhatsApp : +86 199 6355 0024
Email : david@sdxyy.cn
Contact Us
PRODUCT PARAMETERS
Tin-plated steel platecommonly known as tinplate is a steel product with a stampable thin steel plate as the base, tin plating on the surface, and multiple protective films. It has the characteristics of corrosion resistance, non-toxic, odorless, glossy surface, light weight, high strength, easy to print, easy to weld and process, and has strong adaptability to ambient temperature. Single cold-reduced tinplate can be supplied with either a bright, silver, stone or matt finish, and the finish required shall be specified at the time of ordering. Single reduced cold-rolled tinplate is generally specified in nominal thicknesses that are multiples of 0,005 mm, from 0,150 mm up to and including 0,600 mm. It is widely used in food, beverage, grease, chemical, paint, paint, aerosol cans, bottle caps and many other daily necessities packaging, such as a variety of beverage cans, food cans, beer bottle caps and so on.


Product Parameters

Product NameSingle Reduced Cold-Rolled Tinplate
Thickness0.18mm-0.50mm
Width260mm-980mm
LengthSupport Customization
Tin CoatingGeneral: 2.8g or 5.6g, Can be produced according to your needs
Substrate TypeMR / SPCC / L / D
Reference StandardGB/T 2520, JIS G3303, JIS G3315, DIN EN 10202, DIN EN 10203, ASME



Surface State of Tinplate

Surface StateFeatures
Light SurfaceElectroplated tin smooth raw material strip after melting treatment to obtain the glaze,Smooth surface with very fine grindstone pattern
Stonetextured SurfaceElectroplating tin raw material with the glaze obtained after melting treatment,Grindstone pattern with certain direction
Silvercolor SurfaceElectroplating tin raw material with the glazed surface obtained after melting treatment, the surface is rough and dull
Mattless SurfaceThe surface of the substrate is rough and dull, and the tin plating layer is not soft melting



Substrate Type

Substrate TypeIntroduction
MRThe most general steel, steelmaking impurity residue less, excellent mechanical properties and corrosion resistance
LUsed for the production of acidic contents (oranges, yellow peaches, pineapples, etc.), and the inner surface of the food cans for iron high corrosion resistance tinplate substrate steel, such tinplate is often calledKPlate
DUsed to produce two pieces of high-processing tin plate substrate steel, such tin plate is often called.DIMaterial
SPCCChinese characteristics, using ordinary hot rollingSPHCProduces, usually used for miscellaneous tank purposes.



Coating Weight

ClassificationRepresentation of Tin Coating WeightTin Plating Nominal Weight (g/m2)Minimum Average Tin Plating Weight (g/m2)
Equal Tin Plating (E)1.1/1.11.1/1.11.8
2.2/2.22.2/2.24.0
2.8/2.82.8/2.85.0
5.6/5.65.6/5.610.5
Differentiated Tin Plating (D/A)2.2/1.12.2/1.12.0/0.9
2.8/1.12.8/1.12.25/0.9
5.6/1.15.6/1.15.05/0.9
2.8/2.22.8/2.22.25/2.0
5.6/2.25.6/2.25.05/2.0
5.6/2.85.6/2.85.05/2.25



Chemical Composition

No.CSiMnSPCuNiCrMo
D0.120.030.60.050.020.20.150.10.05
L0.130.030.60.050.150.030.040.060.05
MR0.130.030.60.050.20.20.20.10.05



Mechanical Properties & Applications

Standard NameNominal Hardness HR30TSStrong Yield MPAScope of Application
T-149230 /-50Drawing requirements, drawn ironing cans, nozzles, nozzles, closures
T-253245 /-50Ring and plug, dome, closure, shallow pull and special tank parts
T-2.555260 /-50Battery cell, small can cover and body
T-357275 /-50Cans and cans, large diameter caps, crown caps
T-3.559290 /-50Can body, closure and crown lid
T-461340 /-50Can body, closure and crown lid
T-565480 /-50Cans and cans



Ordering Notes

The ordering elements for tin plating generally include: standard grade (including steel grade code, annealing method and other information such as MR T-3 CA), size (the default order is thickness * width * length, tin plating amount ((different thickness plating) Tin needs to add A/D as the marking line mark, if not, no marking line will be marked), surface, order quantity, etc.
When ordering tin plating, please confirm with our sales staff the end use, such as canbody, ends, twist off caps, crown cork, EOE, etc., as well as the contents, special contents such as milk powder, high protein food, mushrooms, fruits, etc.;

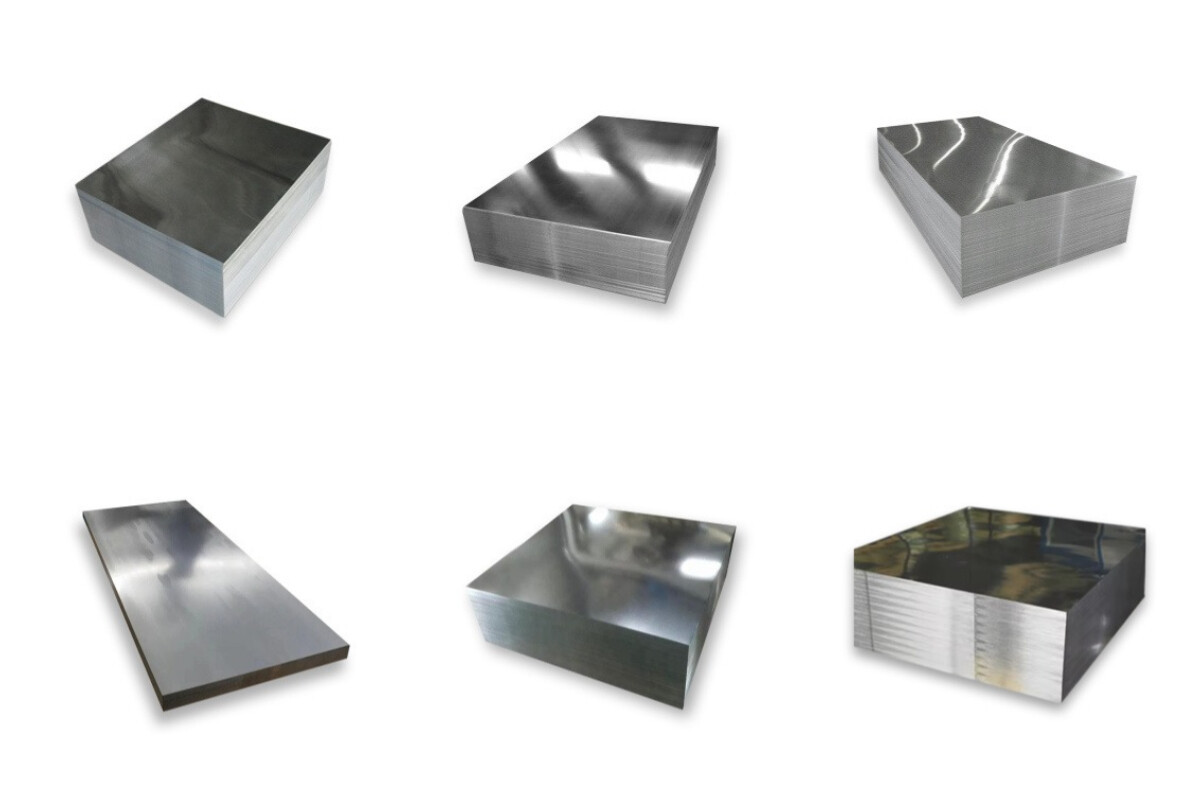

PRODUCT DISPLAY

Single Reduced Cold-Rolled Tinplate

PRODUCT APPLICATION

stainless steel (5).jpg

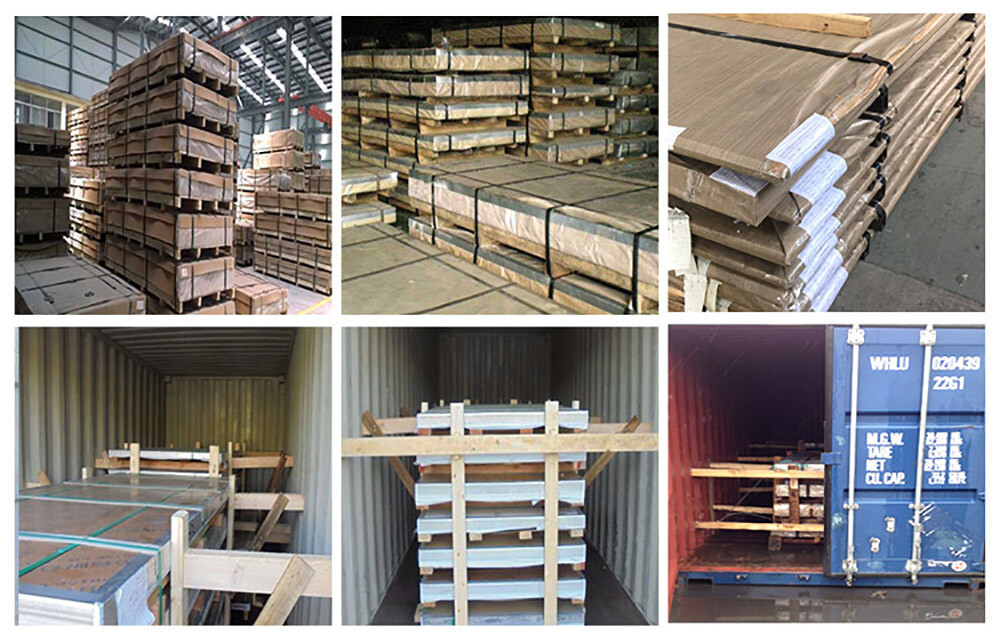

PRODUCT PACKAGING

板 (6).jpg

FACTORY DISPLAY
  • 0b42940c953e9e845fc286c7d6151ed6.jpeg
  • 1 (4).jpg
  • 804af996d899de847b63d27b2378681.jpg
  • 18f663960a174ccbc6d64b545e33963.jpg
  • 未标题-4
  • 1
  • efc381d1efa90cd3bdf1228d8d702b22.jpeg
  • 7c2e8f484fc6229efa5240c3c88242e0.jpeg
FAQ
Q: Are you a factory or a trading company?
A:

Shandong Xinyongyuan Iron & Steel Group Co., Ltd. is a professional foreign trade and supply chain service company specializing in steel products. Leveraging the extensive industrial resources of the "Xinyongyuan " group, we have deeply integrated the production capacities of major domestic steel mills (such as Xinyongyuan, Baowu, HBIS, Ansteel, etc.). We possess stable supply channels and a professional foreign trade team. We are able to provide customers with one-stop steel procurement solutions—covering a wide variety of products and standards—at prices comparable to direct factory supply, combined with exceptional service flexibility.

Q: What products does your company primarily export?
A:

Our product portfolio spans the construction, machinery, energy, and infrastructure sectors. Our main offerings include: Plates & Sheets (Hot-rolled coils, Cold-rolled coils, Medium & Heavy plates, Galvanized sheets, Color-coated sheets); Structural Steel (H-beams, I-beams, Channel steel, Angle steel, Steel sheet piles); Steel Pipes (Seamless pipes, Straight-seam welded pipes, Spiral welded pipes, Galvanized pipes, Square & Rectangular tubes); and Construction Steel (Rebars, Wire rods, Round bars).

Q: What advantages does your company possess in Liaocheng, Shandong?
A:

Located in Liaocheng City, Shandong Province, our company is situated in close proximity to major steel production hubs such as Jinan and Handan, giving us access to abundant upstream resources. Furthermore, we are located within a short-haul transport radius of both Qingdao Port and Rizhao Port. This ensures convenient logistics and low port-consolidation costs, enabling us to efficiently connect with the global maritime shipping network and provide customers with guaranteed rapid delivery.

Q: Which international standards can you supply?
A:

We can produce or supply products in accordance with various international standards, including Chinese National Standards (GB), American Standards (ASTM), Japanese Standards (JIS), European Standards (EN), British Standards (BS), and Australian Standards (AS). Additionally, upon customer request, we can arrange third-party inspections through agencies such as SGS, BV, or Intertek.

Q: What is the Minimum Order Quantity (MOQ)?
A:

The Minimum Order Quantity varies depending on the specific product:
Standard Specifications (e.g., Q235B H-beams, Hot-rolled coils): Orders can be placed starting from one 20-foot container (approximately 20–25 tons).
Special Materials or Custom Sizes: We are open to accommodating small-batch trial orders; please consult with our sales representatives for details. Coiled products are typically shipped in full rolls (individual rolls weighing 15–30 tons); the minimum order quantity is one roll.

Q: What payment methods do you accept?
A:

We support a variety of international trade payment methods. Common combinations include:
30% T/T deposit + 70% balance paid prior to shipment
30% T/T deposit + 70% balance paid upon presentation of a copy of the Bill of Lading
100% Letter of Credit (L/C) at sight
For long-term partners and established clients, more flexible terms may be negotiated.

Q: What is the typical lead time?
A:

In-stock products: Shipped within 7–15 days after receipt of the deposit
Mill-scheduled orders: Generally 20–35 days (depending on the specific product and the steel mill's production schedule)
Large-volume orders (over 5,000 tons): 30–45 days; the specific delivery date must be confirmed with the steel mill

Q: How do you ensure product quality?
A:

We implement a three-tiered quality control system: First, all goods are sourced from reputable, large-scale steel mills and are accompanied by original Mill Test Certificates (MTCs); second, prior to shipment, our quality inspectors conduct on-site spot checks to verify dimensions, surface finish, weight, and other parameters; third, upon client request, we can commission third-party agencies—such as SGS or BV—to perform a comprehensive pre-shipment inspection. Should any material discrepancies or severe quality issues arise due to our fault, we will assume full responsibility for returns, replacements, or negotiated compensation.

Q: Can you provide samples?
A:

Yes. For standard in-stock products, we can provide small-sized samples (approximately 10–20 cm in length) free of charge; customers are only required to cover the international shipping costs. For custom samples produced according to specific drawings, material and processing fees apply; however, these fees are refundable upon the placement of a formal order.
