1008 Cold Rolled Steel Coil
1008 carbon steel coil is primarily used in extruded, cold headed, cold upset, and cold pressed parts and forms. 1008 in the cold rolled condition is used for exposed or unexposed parts where bending, moderate drawing, forming and welding may be involved.
Phone :+86 199 6355 0024
WhatsApp : +86 199 6355 0024
Email : david@sdxyy.cn
Contact Us
PRODUCT PARAMETERS

Carbon Steel: Properties, Production, Examples and Applications


Carbon steel is an iron-carbon alloy, which contains up to 2.1 wt.% carbon. For carbon steels, there is no minimum specified content of other alloying elements, however, they often contain manganese. The maximum manganese, silicon and copper content should be less than 1.65 wt.%, 0.6 wt.% and 0.6 wt.%, respectively.


Types of carbon steel and their properties


Carbon steel can be classified into three categories according to its carbon content: low-carbon steel (or mild-carbon steel), medium-carbon steel and high-carbon steel . Their carbon content, microstructure and properties compare as follows:


Carbon content (wt.%)MicrostructurePropertiesExamples
Low-carbon steel< 0.25Ferrite, pearliteLow hardness and cost. High ductility, toughness, machinability and weldabilityAISI 304, ASTM A815, AISI 316L
Medium-carbon steel0.25 – 0.60MartensiteLow hardenability, medium strength, ductility and toughnessAISI 409, ASTM A29, SCM435
High-carbon steel0.60 – 1.25PearliteHigh hardness, strength, low ductilityAISI 440C, EN 10088-3


Carbon Steel Description


Grade:


1)GB: Q195, Q215, Q235A, Q235B, Q235C, Q235D, Q255A, 255B, Q275, Q295A, Q295B, Q345B, Q345C, Q345D, Q345E, Q390A, Q390B, Q390C,Q390D, Q390E, Q420, Q420B, Q420C, Q420D, Q420E, Q460D, Q460E, Q500D, Q500E, Q550D, Q550E, Q620D, Q620E, Q690D, Q690E


2)EN: S185,S235JR, S275JR, S355JR, S420NL, S460NL S500Q, S550Q, S620Q, S690Q


3)ASTM: Grade B, Grade C, Grade D, A36, Grade 36, Grade 40, Grade42, Grade 50, Grade 55, Grade 60, Grade 65, Grade 80


4)JIS: SS330, SPHC, SS400, SPFC, SPHD, SPHE



PRODUCT DETAILS


1008  Cold Rolled Steel Coil
1008  cold rolled steel coil contains about 1.2% manganese and  0.4% silicon. There are also nickel, aluminium, chromium, copper and molybdenum present in  small quantities in the carbon steels. AISI 1008 carbon steel coil has  excellent weldability, which includes projection, butt, spot and fusion, and  brazeability. 1008  cold rolled steel coil is mainly used in  automobile, printed metal pail, building, building materials, and bicycle,  etc. Besides, it  is the best material to manufacture organic coated strip.


Product  Parameters
Product  Name1008 Cold  Rolled Steel Coil
Production  ProcessHot Rolling,  Cold Rolling
Material  StandardsAISI, ASTM,  ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc.
Width100mm-3000mm
Length1m-12m, or  Customized Size
Thickness0.1mm-400mm
Delivery  ConditionsRolling,  Annealing, Quenching, Tempered or Standard
Surface  ProcessOrdinary, Wire  Drawing, Laminated Film


Chemical  Composition
ElementContent (%)
Iron, Fe99.31-99.7 %
Manganese, Mn0.30-0.50  %
Carbon, C0.10%
Sulfur, S0.05%
Phosphorous, P0.04%


Mechanical  Properties
PropertiesMetricImperial
Tensile  strength340 MPa49300 psi
Yield strength (depending on temper)285  MPa41300  psi
Elastic modulus190-210  Gpa27557-30458  ksi
Bulk modulus (typical for steel)200  GPa29000  ksi
Shear modulus (typical for steel)80.0  GPa11600  ksi
Poisson’s ratio0.27-0.300.27-0.30
Elongation at break (in 50 mm)20%20%
Reduction of area45%45%
Hardness, Brinell9595
Hardness, Knoop (converted from Brinell hardness)113113
Hardness, Rockwell B (converted from Brinell hardness)5555
Hardness, Vickers (converted from Brinell hardness)9898
Machinability (based on AISI 1212 steel as 100 machinability)5555
The  machinability of group I bar, rod, and wire products can be improved by cold  drawing)
Scope of  Application
AISI  1008 carbon steel is primarily used in extruded, cold headed, cold upset, and  cold pressed parts and forms.


PRODUCT DISPLAY

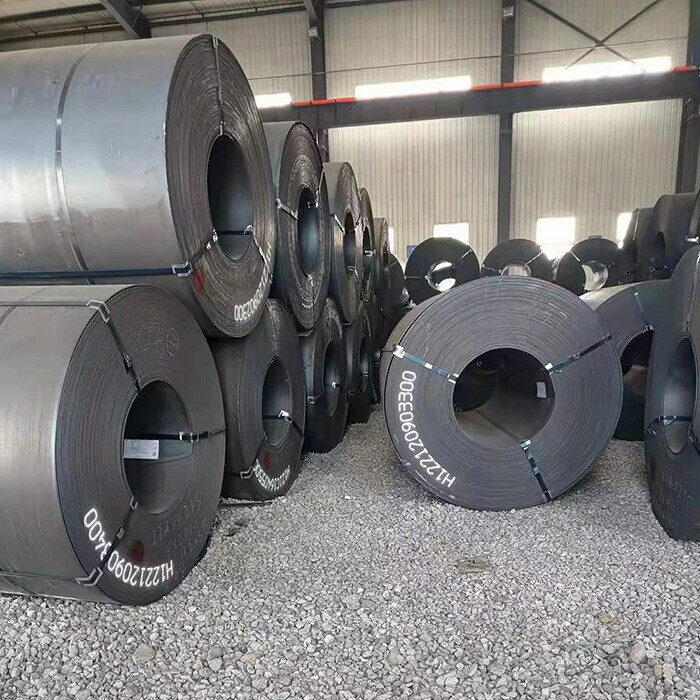

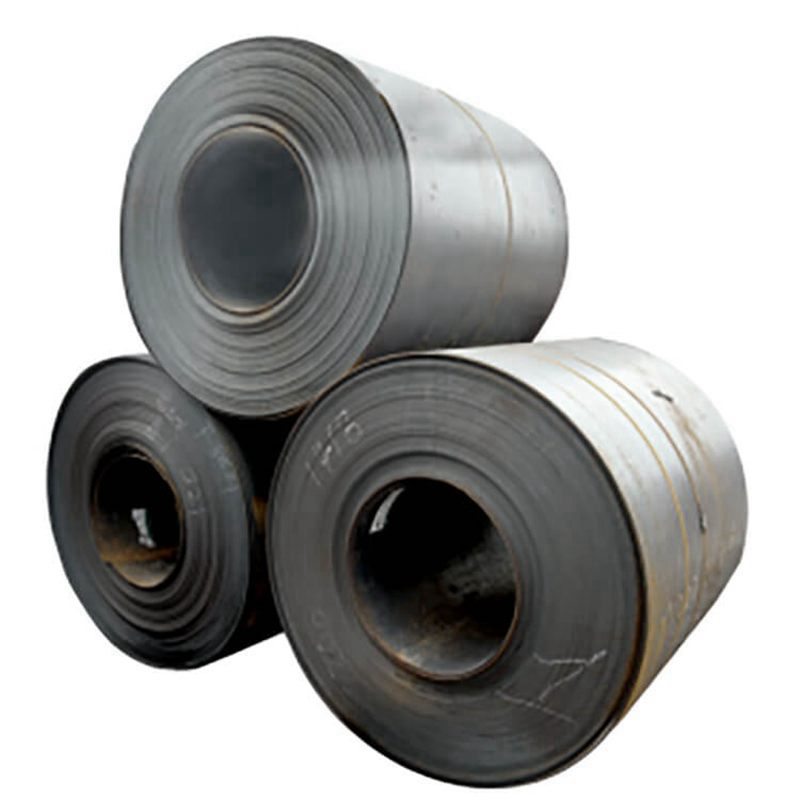

1008 Cold Rolled Steel Coil
