A333 Seamless & Welded Steel Pipe
ASTM A333 is the standard specification for seamless and welded carbon and alloy steel pipe for low temperature applications or other applications requiring notch toughness. This standard covers several grades of ferritic steel: Grade 3, Grade 4, Grade 6, Grade 7, Grade 8, Grade 9, Grade 10 and Grade 11.
Phone :+86 199 6355 0024
WhatsApp : +86 199 6355 0024
Email : david@sdxyy.cn
Contact Us
PRODUCT PARAMETERS

Carbon Steel: Properties, Production, Examples and Applications


Carbon steel is an iron-carbon alloy, which contains up to 2.1 wt.% carbon. For carbon steels, there is no minimum specified content of other alloying elements, however, they often contain manganese. The maximum manganese, silicon and copper content should be less than 1.65 wt.%, 0.6 wt.% and 0.6 wt.%, respectively.


Types of carbon steel and their properties


Carbon steel can be classified into three categories according to its carbon content: low-carbon steel (or mild-carbon steel), medium-carbon steel and high-carbon steel . Their carbon content, microstructure and properties compare as follows:


Carbon content (wt.%)MicrostructurePropertiesExamples
Low-carbon steel< 0.25Ferrite, pearliteLow hardness and cost. High ductility, toughness, machinability and weldabilityAISI 304, ASTM A815, AISI 316L
Medium-carbon steel0.25 – 0.60MartensiteLow hardenability, medium strength, ductility and toughnessAISI 409, ASTM A29, SCM435
High-carbon steel0.60 – 1.25PearliteHigh hardness, strength, low ductilityAISI 440C, EN 10088-3


Carbon Steel Description


Grade:


1)GB: Q195, Q215, Q235A, Q235B, Q235C, Q235D, Q255A, 255B, Q275, Q295A, Q295B, Q345B, Q345C, Q345D, Q345E, Q390A, Q390B, Q390C,Q390D, Q390E, Q420, Q420B, Q420C, Q420D, Q420E, Q460D, Q460E, Q500D, Q500E, Q550D, Q550E, Q620D, Q620E, Q690D, Q690E


2)EN: S185,S235JR, S275JR, S355JR, S420NL, S460NL S500Q, S550Q, S620Q, S690Q


3)ASTM: Grade B, Grade C, Grade D, A36, Grade 36, Grade 40, Grade42, Grade 50, Grade 55, Grade 60, Grade 65, Grade 80


4)JIS: SS330, SPHC, SS400, SPFC, SPHD, SPHE



PRODUCT DETAILS


A333  Seamless & Welded Steel Pipe Description
The  main components of A333 seamless steel pipe include iron, carbon, chromium,  nickel, manganese and other elements. Chromium has excellent corrosion resistance, while the addition  of nickel further enhances the corrosion resistance and toughness of the  material. A333  seamless steel pipe has high strength and hardness, as well as good  plasticity and toughness. These excellent mechanical properties make A333  seamless steel pipe an ideal choice in many high-strength,  high-corrosion-resistant application scenarios. A333 seamless steel pipe is  commonly used to transport oil and natural gas with high temperature and high  pressure owing to the excellent sealing and corrosion resistance.

Product Parameters
Product NameA333 Seamless & Welded Steel Pipe
StandardEN/DIN/JIS/ASTM/BS/ASME/AISI etc.
Outer DiameterSeamless: 1/4"-36"Welding: 21.3mm-3620mm
Round Tube: 1/2"-10"Square  Tube/Rectangular Tube: 15x15mm-400x600mm
Wall  ThicknessSeamless: 1.25mm-50mmWelding: 1.65mm-65mm
Length3-12 meters, Support customization
Surface ProcessBright, Polished, Black
Other  ServicesMachining(cnc), Centerless Grinding(cg), Heat  Treatment, Annealing, Pickling, Polishing, Rolling, Forging, Cutting,  Bending, Small Machining, etc.
Chemical Composition
A333Grade1Grade3Grade4Grade6Grade7Grade8Grade9Grade10Grade11
C0.30.190.120.30.190.130.20.20.1
Mn0.40-1.060.31-0.640.50-1.050.29-1.060.90.90.40-1.061.15-1.500.6
P0.0250.0250.0250.0250.0250.0250.0250.0350.025
S0.0250.0250.0250.0250.0250.0250.0250.0150.025
Si-0.18-0.370.08-0.370.10 min0.13-0.320.13-0.32-0.10-0.350.35
Ni-3.18-3.820.47-0.980.42.03-2.578.40-9.601.60-2.240.2535.0-37.0
Cr--0.44-1.010.3---0.150.5
Cu--0.40-0.750.4--0.75-1.250.15-
Al--0.04-0.30----0.06-
Mechanical Properties
A333Tensile Strength min.Yield Strength min.Elongation % min.
GradepsiMPapsiMPaVerticalTransverse
Grade155 00038030 0002053525
Grade365 00045035 0002403020
Grade460 00041535 0002403016.5
Grade660 00041535 0002403016.5
Grade765 00045035 0002403022
Grade8100 00069075 00051522-
Grade963 00043546 00031528-
Grade1080 00055065 00045022-
Grade1165 00045035 00024018-
Scope of  Application
Seamless  and welded steel pipes for low temperature service and other applications  with the required notch toughness.


PRODUCT DISPLAY

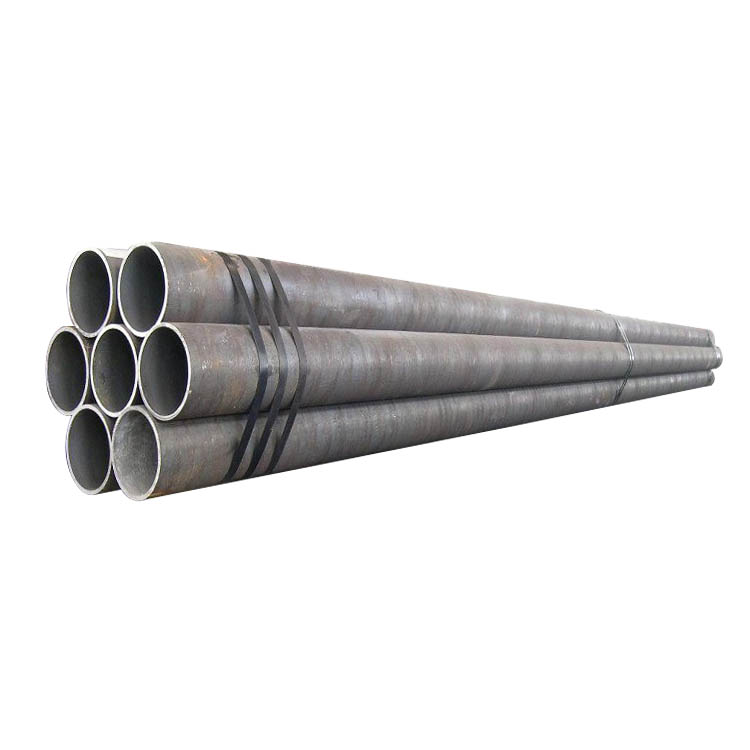

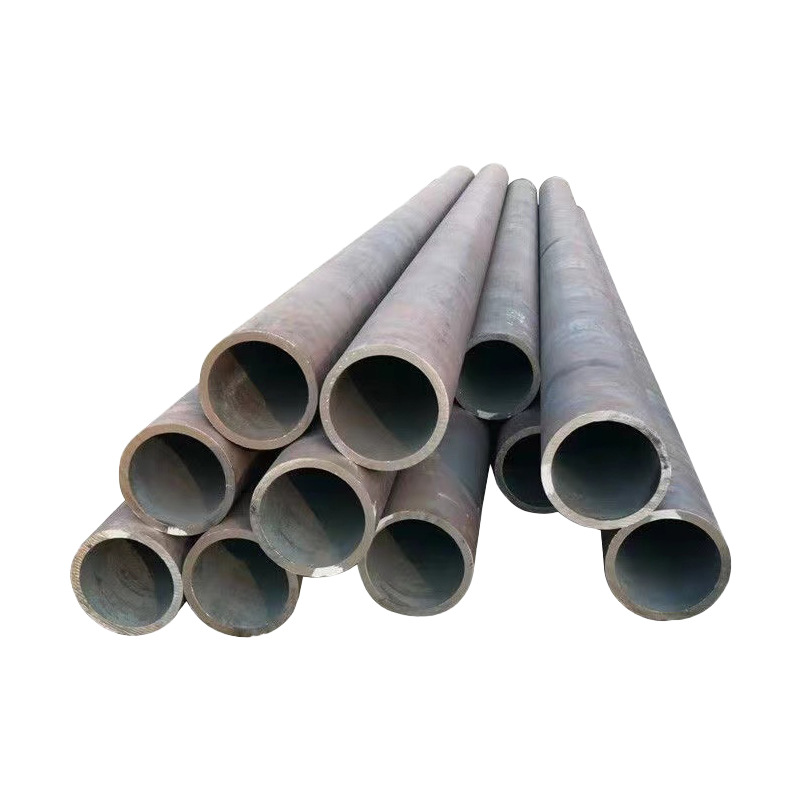

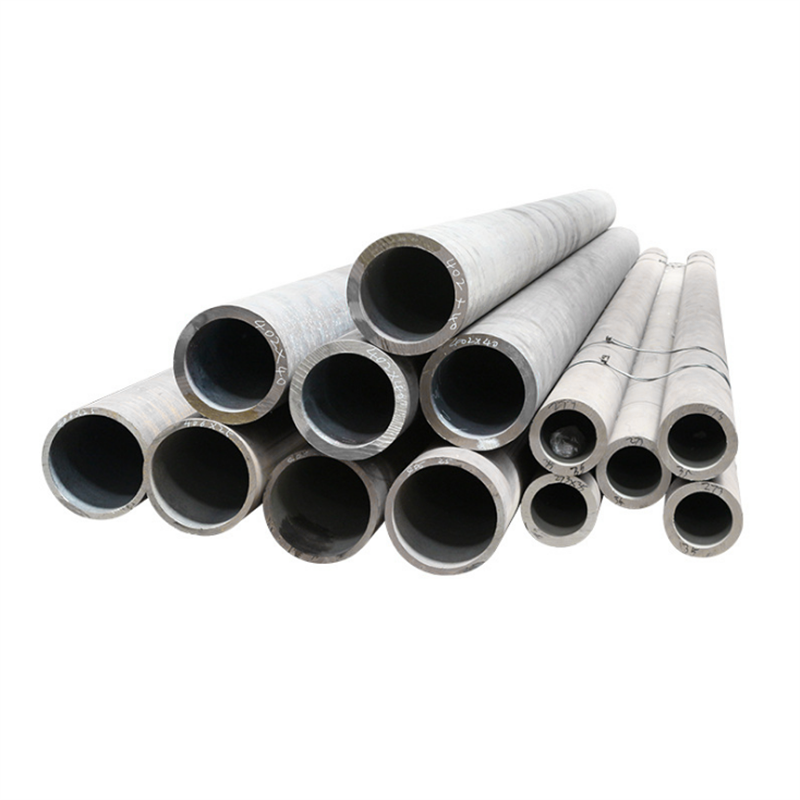

A333 Seamless & Welded Steel Pipe
PRODUCT APPLICATION

A333 Seamless & Welded Steel Pipe

PRODUCT PACKAGING

A333 Seamless & Welded Steel Pipe


FACTORY DISPLAY
  • 0b42940c953e9e845fc286c7d6151ed6.jpeg
  • 1 (4).jpg
  • 804af996d899de847b63d27b2378681.jpg
  • 18f663960a174ccbc6d64b545e33963.jpg
  • 未标题-4
  • 1
  • efc381d1efa90cd3bdf1228d8d702b22.jpeg
  • 7c2e8f484fc6229efa5240c3c88242e0.jpeg
FAQ
Q: Are you a factory or a trading company?
A:

Shandong Xinyongyuan Iron & Steel Group Co., Ltd. is a professional foreign trade and supply chain service company specializing in steel products. Leveraging the extensive industrial resources of the "Xinyongyuan " group, we have deeply integrated the production capacities of major domestic steel mills (such as Xinyongyuan, Baowu, HBIS, Ansteel, etc.). We possess stable supply channels and a professional foreign trade team. We are able to provide customers with one-stop steel procurement solutions—covering a wide variety of products and standards—at prices comparable to direct factory supply, combined with exceptional service flexibility.

Q: What products does your company primarily export?
A:

Our product portfolio spans the construction, machinery, energy, and infrastructure sectors. Our main offerings include: Plates & Sheets (Hot-rolled coils, Cold-rolled coils, Medium & Heavy plates, Galvanized sheets, Color-coated sheets); Structural Steel (H-beams, I-beams, Channel steel, Angle steel, Steel sheet piles); Steel Pipes (Seamless pipes, Straight-seam welded pipes, Spiral welded pipes, Galvanized pipes, Square & Rectangular tubes); and Construction Steel (Rebars, Wire rods, Round bars).

Q: What advantages does your company possess in Liaocheng, Shandong?
A:

Located in Liaocheng City, Shandong Province, our company is situated in close proximity to major steel production hubs such as Jinan and Handan, giving us access to abundant upstream resources. Furthermore, we are located within a short-haul transport radius of both Qingdao Port and Rizhao Port. This ensures convenient logistics and low port-consolidation costs, enabling us to efficiently connect with the global maritime shipping network and provide customers with guaranteed rapid delivery.

Q: Which international standards can you supply?
A:

We can produce or supply products in accordance with various international standards, including Chinese National Standards (GB), American Standards (ASTM), Japanese Standards (JIS), European Standards (EN), British Standards (BS), and Australian Standards (AS). Additionally, upon customer request, we can arrange third-party inspections through agencies such as SGS, BV, or Intertek.

Q: What is the Minimum Order Quantity (MOQ)?
A:

The Minimum Order Quantity varies depending on the specific product:
Standard Specifications (e.g., Q235B H-beams, Hot-rolled coils): Orders can be placed starting from one 20-foot container (approximately 20–25 tons).
Special Materials or Custom Sizes: We are open to accommodating small-batch trial orders; please consult with our sales representatives for details. Coiled products are typically shipped in full rolls (individual rolls weighing 15–30 tons); the minimum order quantity is one roll.

Q: What payment methods do you accept?
A:

We support a variety of international trade payment methods. Common combinations include:
30% T/T deposit + 70% balance paid prior to shipment
30% T/T deposit + 70% balance paid upon presentation of a copy of the Bill of Lading
100% Letter of Credit (L/C) at sight
For long-term partners and established clients, more flexible terms may be negotiated.

Q: What is the typical lead time?
A:

In-stock products: Shipped within 7–15 days after receipt of the deposit
Mill-scheduled orders: Generally 20–35 days (depending on the specific product and the steel mill's production schedule)
Large-volume orders (over 5,000 tons): 30–45 days; the specific delivery date must be confirmed with the steel mill

Q: How do you ensure product quality?
A:

We implement a three-tiered quality control system: First, all goods are sourced from reputable, large-scale steel mills and are accompanied by original Mill Test Certificates (MTCs); second, prior to shipment, our quality inspectors conduct on-site spot checks to verify dimensions, surface finish, weight, and other parameters; third, upon client request, we can commission third-party agencies—such as SGS or BV—to perform a comprehensive pre-shipment inspection. Should any material discrepancies or severe quality issues arise due to our fault, we will assume full responsibility for returns, replacements, or negotiated compensation.

Q: Can you provide samples?
A:

Yes. For standard in-stock products, we can provide small-sized samples (approximately 10–20 cm in length) free of charge; customers are only required to cover the international shipping costs. For custom samples produced according to specific drawings, material and processing fees apply; however, these fees are refundable upon the placement of a formal order.
