1023 Cold Rolled Steel Plate
1023 cold rolled steel plate is made of low-carbon alloy steel designed for use in applications that require excellent machinability and formability. This type of steel comes with outstanding weldability and machinability, making it an ideal choice for various applications. Its composition mainly includes iron, carbon, and manganese.
Phone :+86 199 6355 0024
WhatsApp : +86 199 6355 0024
Email : david@sdxyy.cn
Contact Us
PRODUCT PARAMETERS

Carbon Steel: Properties, Production, Examples and Applications


Carbon steel is an iron-carbon alloy, which contains up to 2.1 wt.% carbon. For carbon steels, there is no minimum specified content of other alloying elements, however, they often contain manganese. The maximum manganese, silicon and copper content should be less than 1.65 wt.%, 0.6 wt.% and 0.6 wt.%, respectively.


Types of carbon steel and their properties


Carbon steel can be classified into three categories according to its carbon content: low-carbon steel (or mild-carbon steel), medium-carbon steel and high-carbon steel [1]. Their carbon content, microstructure and properties compare as follows:




Carbon content (wt.%)MicrostructurePropertiesExamples
Low-carbon steel< 0.25Ferrite, pearliteLow hardness and cost. High ductility, toughness, machinability and weldabilityAISI 304, ASTM A815, AISI 316L
Medium-carbon steel0.25 – 0.60MartensiteLow hardenability, medium strength, ductility and toughnessAISI 409, ASTM A29, SCM435
High-carbon steel0.60 – 1.25PearliteHigh hardness, strength, low ductilityAISI 440C, EN 10088-3


Carbon Steel Description



Grade:


1)GB: Q195, Q215, Q235A, Q235B, Q235C, Q235D, Q255A, 255B, Q275, Q295A, Q295B, Q345B, Q345C, Q345D, Q345E, Q390A, Q390B, Q390C,Q390D, Q390E, Q420, Q420B, Q420C, Q420D, Q420E, Q460D, Q460E, Q500D, Q500E, Q550D, Q550E, Q620D, Q620E, Q690D, Q690E


2)EN: S185,S235JR, S275JR, S355JR, S420NL, S460NL S500Q, S550Q, S620Q, S690Q


3)ASTM: Grade B, Grade C, Grade D, A36, Grade 36, Grade 40, Grade42, Grade 50, Grade 55, Grade 60, Grade 65, Grade 80


4)JIS: SS330, SPHC, SS400, SPFC, SPHD, SPHE



PRODUCT DETAILS


1023 Cold  Rolled Steel Plate
1023  cold rolled steel plate is made of low-carbon alloy steel designed for use in  applications that require excellent machinability and formability. This type  of steel comes with outstanding weldability and machinability, making it an  ideal choice for various applications. Its composition mainly includes iron,  carbon, and manganese. 1023 steel plate does not have strong heat resistance  compared to other steels due to its low carbon content; therefore it should  not be used for applications requiring high temperature operation unless  proper heat treatments are applied beforehand such as tempering or annealing.


Product  Parameters
Product Name1023  Cold Rolled Steel Plate
Production  ProcessHot Rolling, Cold  Rolling
Material  StandardsAISI, ASTM, ASME,  DIN, BS, EN, ISO, JIS, GOST, SAE, etc.
Width100mm-3000mm
Length1m-12m, or  Customized Size
Thickness0.1mm-400mm
Delivery  ConditionsRolling,  Annealing, Quenching, Tempered or Standard
Surface  ProcessOrdinary, Wire  Drawing, Laminated Film
Chemical  Composition
ElementContent (%)
Iron, Fe99.06-99.51
Manganese. Mn0.30-0.60
Carbon, C0.19-0.25
Sulfur, S≤  0.050
Phosphorous, P≤  0.040
Mechanical  Properties
Mechanical  PropertiesMetricImperial
Tensile  strength425 MPa61600 psi
Yield strength360  MPa52200  psi
Shear modulus80.0  GPa11600  ksi
Bulk modulus140  GPa20300  ksi
Elastic modulus190-210  GPa27557-30458  ksi
Poisson’s ratio0.27-0.300.27-0.30
Elongation at break15%15%
Reduction of area40%40%
Hardness Brinell121121
Hardness, Knoop140140
Hardness, Rockwell B6868
Hardness, Vickers126126
Machinability6565

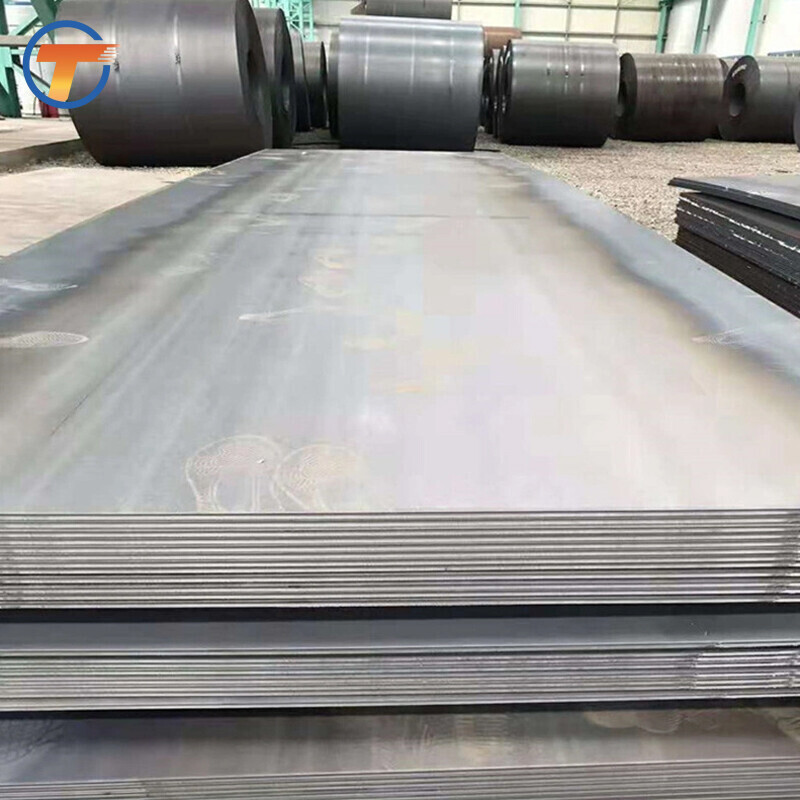

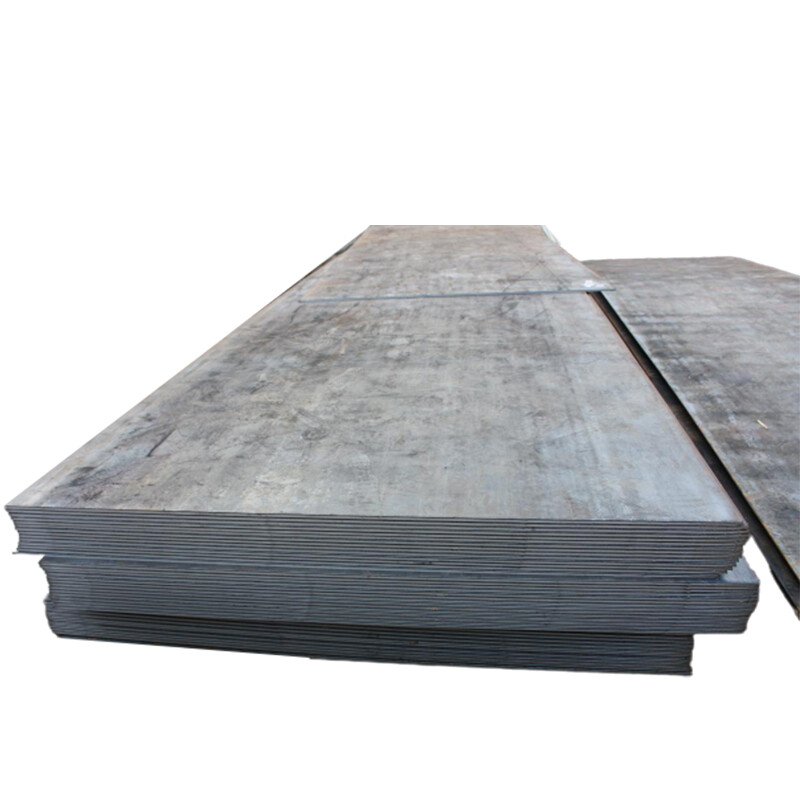

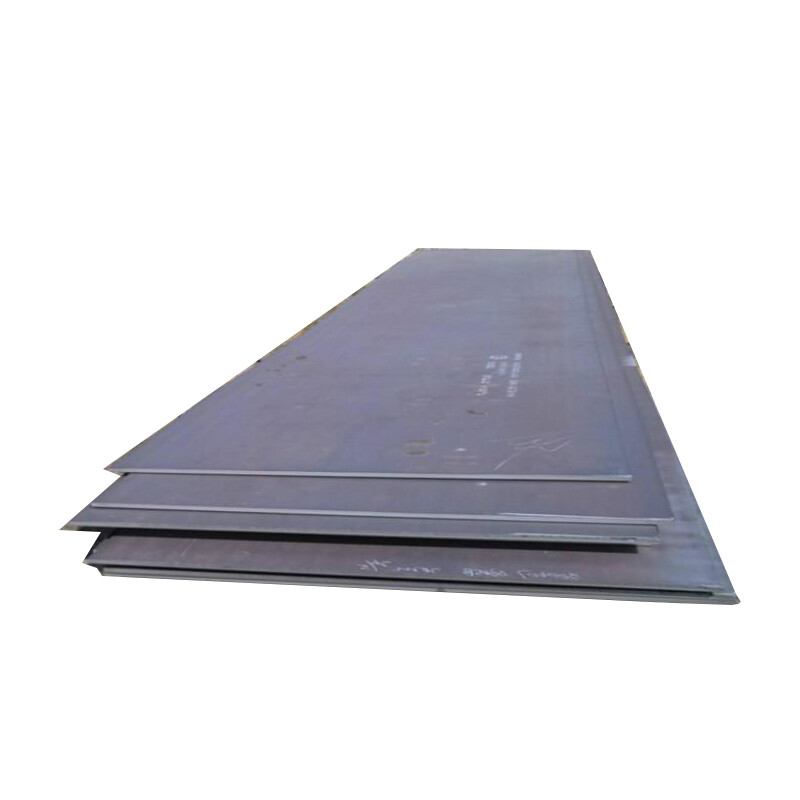

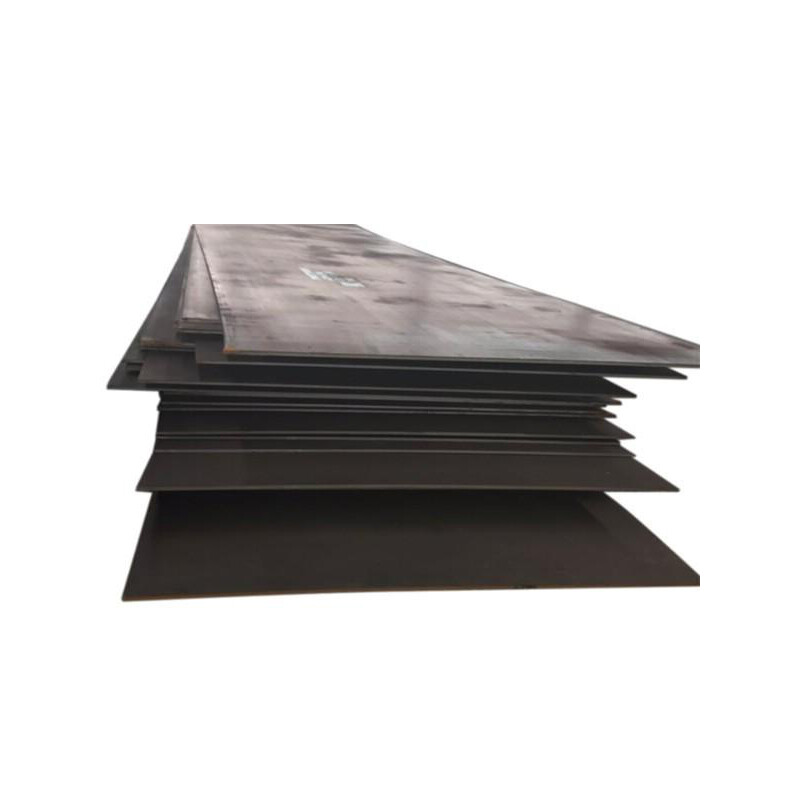

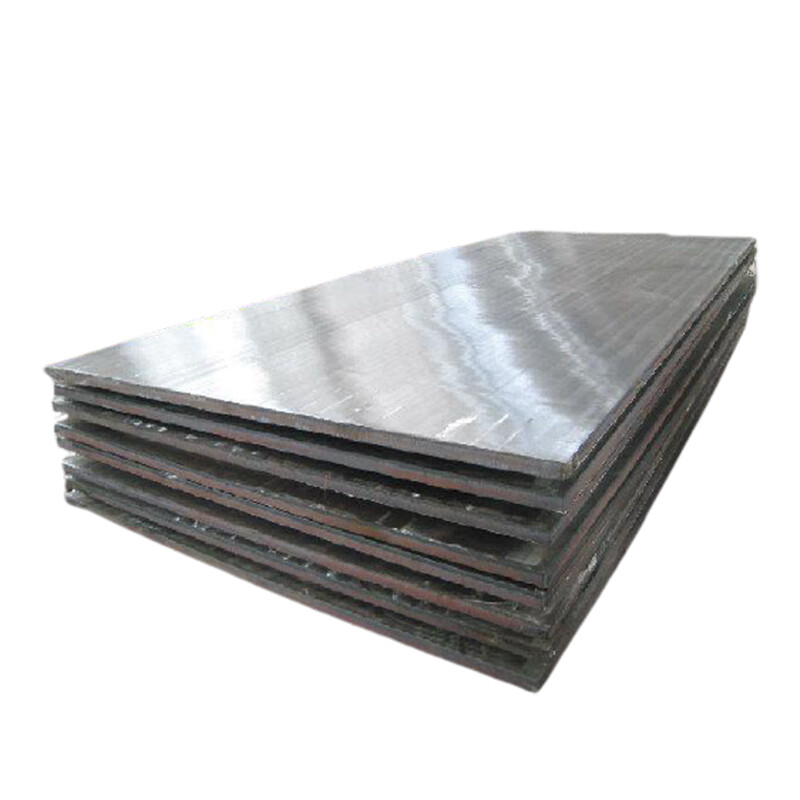

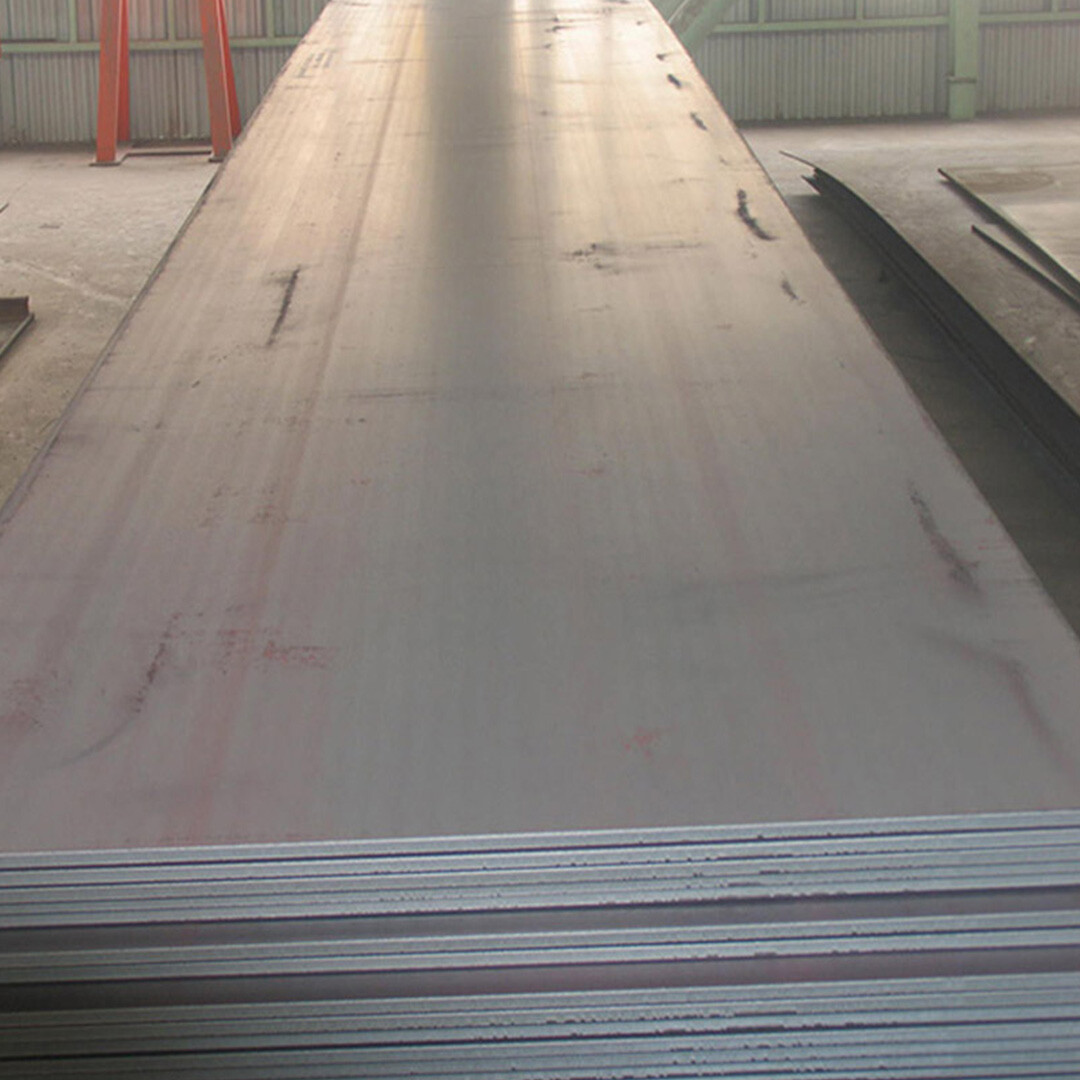

PRODUCT DISPLAY

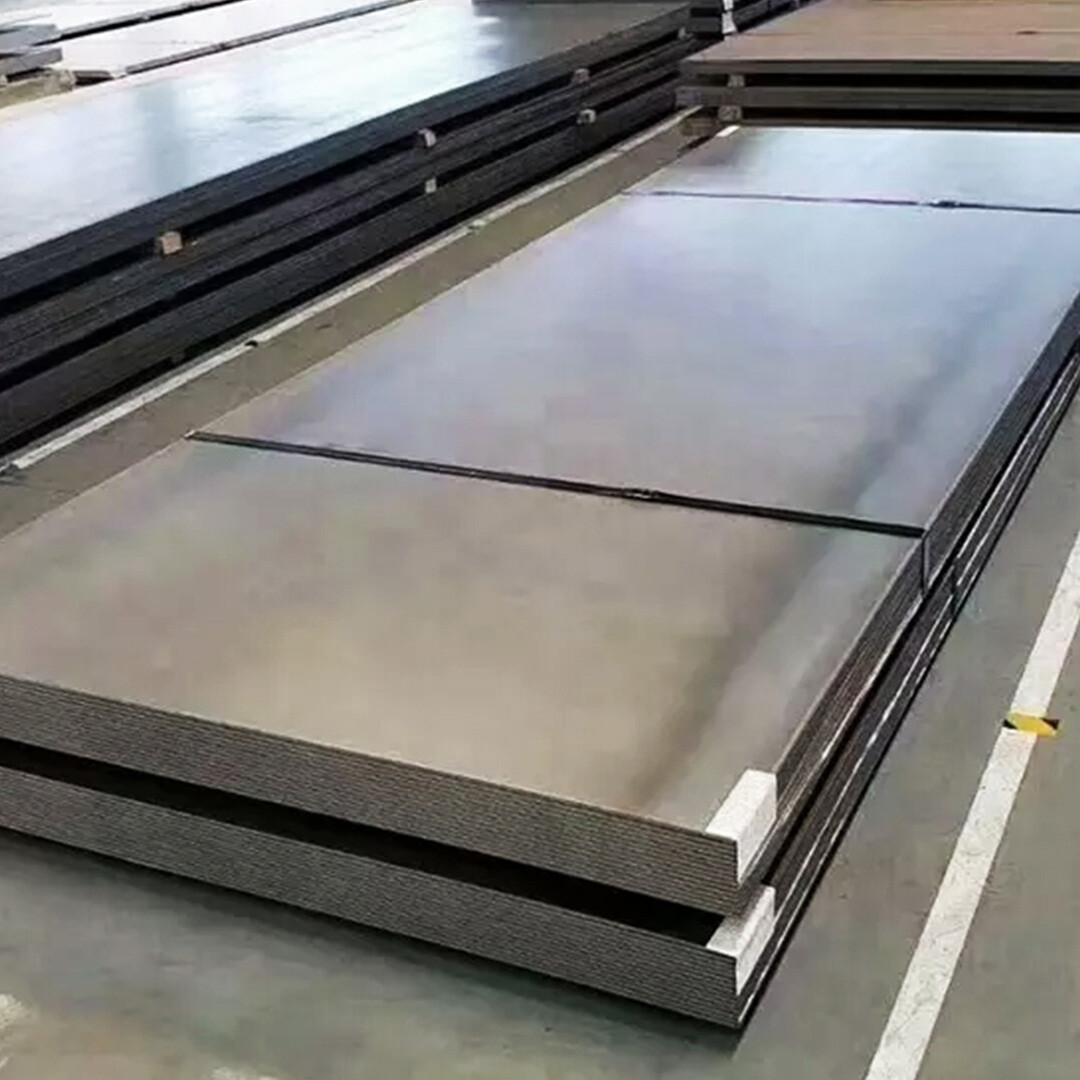

1023 Cold Rolled Steel Plate


PRODUCT APPLICATION

1023 Cold Rolled Steel Plate

PRODUCT PACKAGING

1023 Cold Rolled Steel Plate

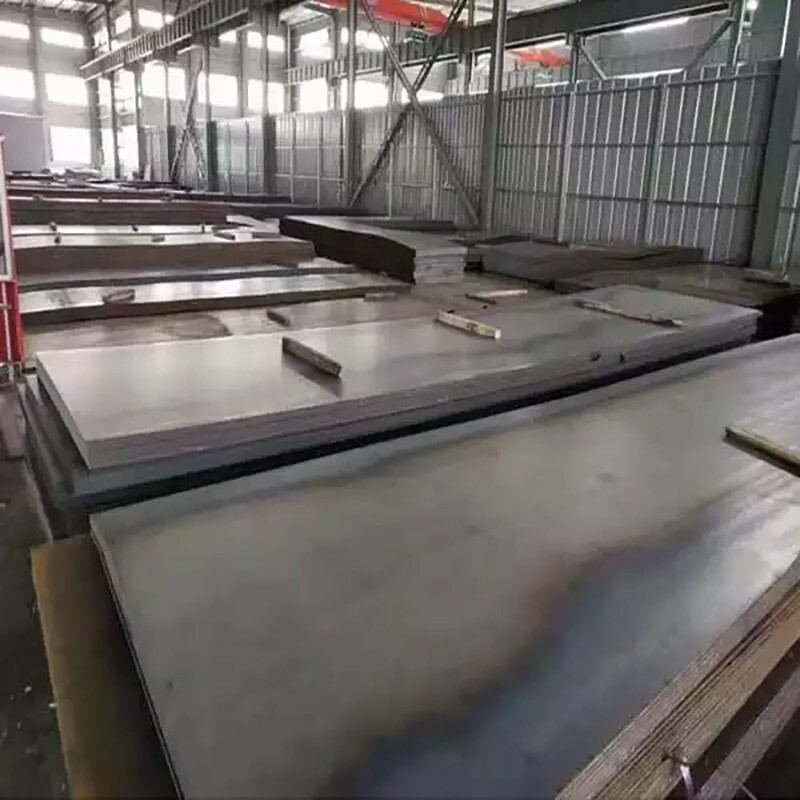

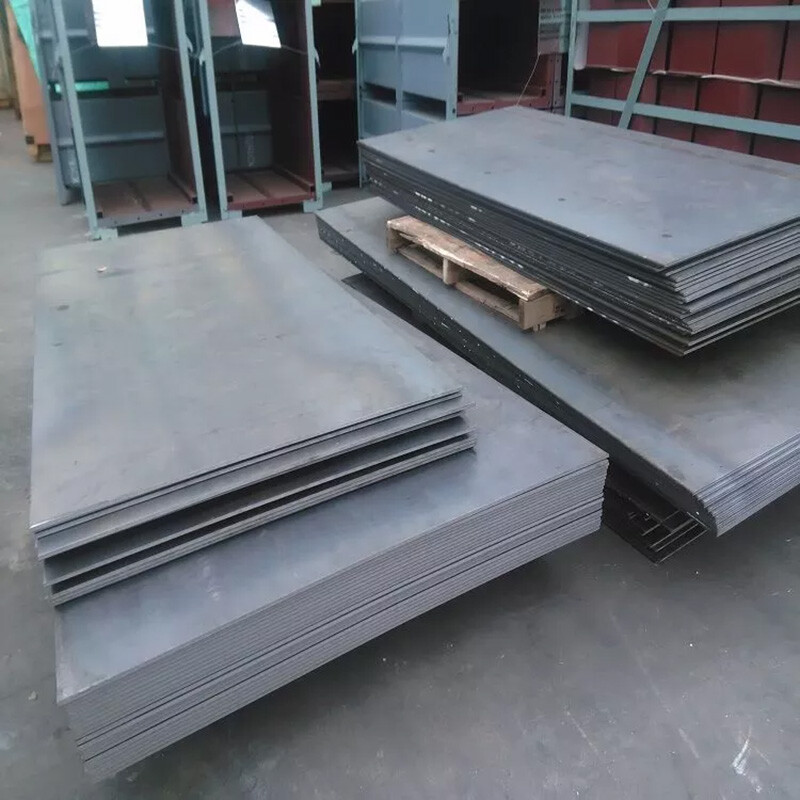

FACTORY DISPLAY
  • 0b42940c953e9e845fc286c7d6151ed6.jpeg
  • 1 (4).jpg
  • 804af996d899de847b63d27b2378681.jpg
  • 18f663960a174ccbc6d64b545e33963.jpg
  • 未标题-4
  • 1
  • efc381d1efa90cd3bdf1228d8d702b22.jpeg
  • 7c2e8f484fc6229efa5240c3c88242e0.jpeg
FAQ
Q: Are you a factory or a trading company?
A:

Shandong Xinyongyuan Iron & Steel Group Co., Ltd. is a professional foreign trade and supply chain service company specializing in steel products. Leveraging the extensive industrial resources of the "Xinyongyuan " group, we have deeply integrated the production capacities of major domestic steel mills (such as Xinyongyuan, Baowu, HBIS, Ansteel, etc.). We possess stable supply channels and a professional foreign trade team. We are able to provide customers with one-stop steel procurement solutions—covering a wide variety of products and standards—at prices comparable to direct factory supply, combined with exceptional service flexibility.

Q: What products does your company primarily export?
A:

Our product portfolio spans the construction, machinery, energy, and infrastructure sectors. Our main offerings include: Plates & Sheets (Hot-rolled coils, Cold-rolled coils, Medium & Heavy plates, Galvanized sheets, Color-coated sheets); Structural Steel (H-beams, I-beams, Channel steel, Angle steel, Steel sheet piles); Steel Pipes (Seamless pipes, Straight-seam welded pipes, Spiral welded pipes, Galvanized pipes, Square & Rectangular tubes); and Construction Steel (Rebars, Wire rods, Round bars).

Q: What advantages does your company possess in Liaocheng, Shandong?
A:

Located in Liaocheng City, Shandong Province, our company is situated in close proximity to major steel production hubs such as Jinan and Handan, giving us access to abundant upstream resources. Furthermore, we are located within a short-haul transport radius of both Qingdao Port and Rizhao Port. This ensures convenient logistics and low port-consolidation costs, enabling us to efficiently connect with the global maritime shipping network and provide customers with guaranteed rapid delivery.

Q: Which international standards can you supply?
A:

We can produce or supply products in accordance with various international standards, including Chinese National Standards (GB), American Standards (ASTM), Japanese Standards (JIS), European Standards (EN), British Standards (BS), and Australian Standards (AS). Additionally, upon customer request, we can arrange third-party inspections through agencies such as SGS, BV, or Intertek.

Q: What is the Minimum Order Quantity (MOQ)?
A:

The Minimum Order Quantity varies depending on the specific product:
Standard Specifications (e.g., Q235B H-beams, Hot-rolled coils): Orders can be placed starting from one 20-foot container (approximately 20–25 tons).
Special Materials or Custom Sizes: We are open to accommodating small-batch trial orders; please consult with our sales representatives for details. Coiled products are typically shipped in full rolls (individual rolls weighing 15–30 tons); the minimum order quantity is one roll.

Q: What payment methods do you accept?
A:

We support a variety of international trade payment methods. Common combinations include:
30% T/T deposit + 70% balance paid prior to shipment
30% T/T deposit + 70% balance paid upon presentation of a copy of the Bill of Lading
100% Letter of Credit (L/C) at sight
For long-term partners and established clients, more flexible terms may be negotiated.

Q: What is the typical lead time?
A:

In-stock products: Shipped within 7–15 days after receipt of the deposit
Mill-scheduled orders: Generally 20–35 days (depending on the specific product and the steel mill's production schedule)
Large-volume orders (over 5,000 tons): 30–45 days; the specific delivery date must be confirmed with the steel mill

Q: How do you ensure product quality?
A:

We implement a three-tiered quality control system: First, all goods are sourced from reputable, large-scale steel mills and are accompanied by original Mill Test Certificates (MTCs); second, prior to shipment, our quality inspectors conduct on-site spot checks to verify dimensions, surface finish, weight, and other parameters; third, upon client request, we can commission third-party agencies—such as SGS or BV—to perform a comprehensive pre-shipment inspection. Should any material discrepancies or severe quality issues arise due to our fault, we will assume full responsibility for returns, replacements, or negotiated compensation.

Q: Can you provide samples?
A:

Yes. For standard in-stock products, we can provide small-sized samples (approximately 10–20 cm in length) free of charge; customers are only required to cover the international shipping costs. For custom samples produced according to specific drawings, material and processing fees apply; however, these fees are refundable upon the placement of a formal order.
